The F-22 Raptor, America’s premier air dominance fighter, remains shrouded in secrecy, but a recent glimpse inside its cockpit offers a rare look at the cutting-edge technology and human-machine interface that enables its unparalleled performance. While detailed operational specifics remain classified, available information sheds light on the pilot’s interaction with the aircraft’s advanced sensors, communication systems, and weaponry.

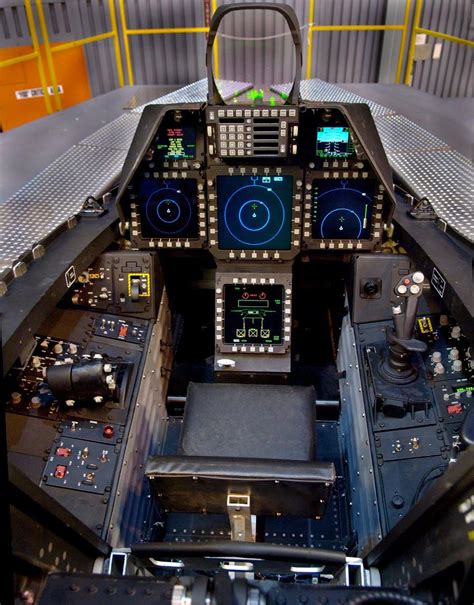

The Raptor’s cockpit is a marvel of ergonomic design and technological integration, prioritizing pilot awareness and workload management. The primary interface is a large, multi-function display (MFD) that consolidates critical flight information, sensor data, and tactical situation awareness. According to a pilot quoted in the original source, “Pilots spend a lot of time head-down looking at screens,” a statement that underscores the reliance on digital information in modern air combat. This head-down time is minimized through the extensive use of voice command and hands-on throttle and stick (HOTAS) controls, allowing pilots to manage the aircraft and its systems without removing their hands from the primary flight controls. The HOTAS system enables fingertip control of radar, electronic warfare systems, and weapons selection, maximizing efficiency and minimizing distractions during high-stress combat scenarios. The pilot’s helmet-mounted display (HMD) further enhances situational awareness by projecting flight data and targeting information directly onto the visor, allowing them to keep their eyes focused outside the cockpit.
The F-22’s advanced avionics suite is the key to its air dominance capabilities. The AN/APG-77 active electronically scanned array (AESA) radar provides unparalleled detection range and tracking accuracy, allowing the Raptor to identify and engage threats at extended distances. The radar is capable of simultaneously tracking multiple targets and providing high-resolution ground mapping, enhancing its versatility in both air-to-air and air-to-ground roles. Integrated electronic warfare systems provide robust self-protection capabilities, including radar jamming and electronic countermeasures, enhancing the Raptor’s survivability in contested airspace. The fusion of sensor data from multiple sources creates a comprehensive and real-time picture of the battlespace, providing pilots with superior situational awareness compared to legacy aircraft.
Beyond the advanced technology, the F-22 cockpit is designed with pilot comfort and safety in mind. The ejection seat is a state-of-the-art system designed to protect the pilot during high-speed ejections, while the advanced life support system provides oxygen and regulates cabin pressure, ensuring pilot comfort and performance during long-duration missions. The cockpit environment is carefully controlled to minimize pilot fatigue and maximize alertness, crucial factors in maintaining peak performance during demanding combat operations.
The F-22’s cockpit exemplifies the synergy between human and machine, representing a significant advancement in fighter aircraft technology. The advanced avionics, ergonomic design, and pilot-centric interface combine to create a formidable weapon system capable of dominating the skies. While many details remain classified, the available information provides a glimpse into the sophisticated technology that makes the F-22 Raptor the world’s most advanced fighter aircraft.
The integration of advanced technology in the F-22 cockpit extends beyond individual systems, encompassing a network-centric approach to warfare. The Raptor is equipped with advanced communication and data-linking capabilities, allowing it to seamlessly share information with other aircraft, ground stations, and naval vessels. This enhanced connectivity enables coordinated operations and provides a significant advantage in complex combat scenarios. The F-22 can act as a sensor platform, gathering and disseminating critical intelligence to other assets in the battlespace, enhancing overall situational awareness and mission effectiveness. This network-centric capability transforms the F-22 from a single fighter into an integral part of a larger combat system.
The F-22 Raptor’s design reflects a philosophy of proactive threat management. The pilot, supported by advanced technology, is empowered to anticipate and respond to evolving threats with speed and precision. The Raptor’s stealth capabilities, combined with its advanced sensors and weapons, allow it to penetrate enemy airspace undetected and engage targets before they can pose a threat. The emphasis on proactive threat management reduces the risk of being surprised or overwhelmed in combat, providing a decisive advantage over less advanced adversaries. The F-22’s ability to identify and neutralize threats at extended distances minimizes the risk to friendly forces and enhances overall mission success.
The F-22’s advanced sensor fusion is critical to its operational effectiveness. Sensor fusion involves integrating data from multiple sensors, such as radar, electronic warfare systems, and infrared sensors, to create a more complete and accurate picture of the battlespace. This integrated data is then presented to the pilot in a clear and intuitive manner, allowing them to quickly assess the situation and make informed decisions. Sensor fusion reduces pilot workload by filtering out irrelevant information and highlighting critical threats. It also enhances situational awareness by providing a more comprehensive understanding of the battlespace than would be possible with individual sensors alone. The F-22’s sensor fusion capabilities are constantly being upgraded to improve its ability to detect and track emerging threats.
The F-22 Raptor’s cockpit also incorporates advanced training and simulation capabilities. Pilots can use virtual reality simulations to practice a wide range of combat scenarios, enhancing their skills and preparing them for real-world missions. These simulations can replicate various weather conditions, enemy tactics, and equipment configurations, providing pilots with realistic training experiences. The F-22’s training and simulation capabilities are constantly being updated to reflect the latest threats and technologies. This ensures that pilots are always prepared to face the challenges of modern air combat. The integration of training and simulation capabilities into the cockpit allows pilots to maintain their proficiency and readiness without having to rely solely on live flight training, which can be costly and time-consuming.
The F-22’s maintenance and support requirements are also significant considerations in its overall operational effectiveness. The aircraft’s advanced technology requires specialized maintenance procedures and highly trained technicians. The F-22’s stealth coatings, for example, are delicate and require frequent inspection and repair. The aircraft’s complex avionics systems also require regular maintenance and software updates. The cost of maintaining the F-22 is substantial, but it is considered necessary to ensure that the aircraft remains combat-ready. The Air Force is constantly working to improve the F-22’s maintenance procedures and reduce its overall operating costs.
The F-22 Raptor’s cockpit continues to evolve as technology advances. The Air Force is constantly developing new upgrades and enhancements to improve the aircraft’s capabilities. These upgrades include new sensors, weapons, and software, as well as improvements to the cockpit’s ergonomics and pilot interface. The F-22’s open architecture allows for the integration of new technologies without requiring major modifications to the aircraft’s basic design. This ensures that the F-22 will remain a cutting-edge fighter for many years to come. The ongoing development of the F-22’s cockpit reflects the Air Force’s commitment to maintaining air dominance and ensuring the safety and effectiveness of its pilots.
The pilot-vehicle interface (PVI) in the F-22 is a critical area of focus for ongoing development. This interface encompasses all the ways in which the pilot interacts with the aircraft, including the displays, controls, and voice command system. The goal is to create a PVI that is intuitive, efficient, and minimizes pilot workload. Researchers are exploring new technologies such as augmented reality and advanced speech recognition to further enhance the PVI. Augmented reality could be used to overlay digital information onto the pilot’s view of the outside world, providing them with real-time tactical data and enhancing their situational awareness. Advanced speech recognition could allow pilots to control more of the aircraft’s systems using voice commands, freeing up their hands to focus on flying and fighting.
The cybersecurity of the F-22’s cockpit is also a growing concern. As the aircraft becomes increasingly reliant on digital systems and network connectivity, it becomes more vulnerable to cyberattacks. The Air Force is taking steps to protect the F-22’s systems from cyber threats, including implementing robust security protocols and conducting regular security audits. Cybersecurity experts are also working to develop new defenses against emerging cyber threats. The security of the F-22’s cockpit is essential to ensuring the aircraft’s mission effectiveness and protecting sensitive information.
The environmental control system (ECS) within the F-22 cockpit is another critical component. This system is responsible for maintaining a comfortable and safe environment for the pilot, regulating temperature, pressure, and oxygen levels. The ECS must be able to operate effectively in a wide range of conditions, from the extreme cold of high altitudes to the intense heat of desert environments. The ECS also plays a role in protecting the pilot from the effects of G-forces, which can be extreme during high-speed maneuvers. The F-22’s ECS is a highly sophisticated system that is essential to ensuring pilot comfort, safety, and performance.
The F-22 Raptor’s legacy extends beyond its technological capabilities. It has become a symbol of American air power and a testament to the ingenuity of aerospace engineers. The F-22’s performance in exercises and real-world operations has consistently demonstrated its superiority over other fighter aircraft. The aircraft has played a key role in maintaining air dominance and deterring potential adversaries. The F-22 Raptor’s impact on aviation technology and military strategy will be felt for many years to come. Its development and deployment have spurred innovation in areas such as stealth technology, sensor fusion, and pilot-vehicle interface design. The F-22’s legacy serves as an inspiration for future generations of aerospace engineers and military strategists.
The F-22 continues to serve as a critical component of the United States Air Force’s air power, ensuring its dominance in the skies. Its advanced technology, exceptional performance, and highly trained pilots make it a formidable force. The ongoing development and upgrades to the F-22’s cockpit will ensure that it remains at the forefront of fighter aircraft technology for years to come. The F-22 Raptor stands as a symbol of American innovation and a testament to the dedication and expertise of the men and women who design, build, and maintain it. Its presence in the skies provides a vital deterrent and ensures the security of the United States and its allies. The F-22 Raptor is more than just a fighter aircraft; it is a symbol of American strength and technological prowess.
The ergonomics of the F-22 cockpit are meticulously designed to minimize pilot fatigue and maximize performance. The seating position, control layout, and display placement are all carefully considered to ensure that the pilot can operate the aircraft comfortably and efficiently for extended periods. The cockpit is also designed to be adaptable to pilots of different sizes and shapes, ensuring that all pilots can operate the aircraft effectively. The ergonomic design of the F-22 cockpit is a key factor in maintaining pilot alertness and reducing the risk of errors during high-stress combat situations.
The future of the F-22 cockpit is likely to involve even greater integration of artificial intelligence (AI) and automation. AI could be used to assist the pilot with tasks such as threat assessment, route planning, and weapons selection, freeing up their time to focus on more critical tasks. Automation could be used to control more of the aircraft’s systems, further reducing pilot workload. However, it is important to ensure that these technologies are implemented in a way that maintains pilot control and situational awareness. The goal is to augment the pilot’s capabilities, not to replace them. The integration of AI and automation into the F-22 cockpit has the potential to significantly enhance the aircraft’s performance and reduce pilot workload.
The F-22’s impact on the development of other aircraft is also noteworthy. Many of the technologies developed for the F-22, such as its stealth coatings, advanced sensors, and sensor fusion algorithms, have been adapted and incorporated into other military aircraft, including the F-35 Joint Strike Fighter. The F-22 served as a testbed for these technologies, proving their effectiveness and paving the way for their wider adoption. The F-22’s legacy extends beyond its own operational capabilities, influencing the design and development of future generations of military aircraft.
The F-22 Raptor’s enduring relevance in the modern battlespace is a testament to its exceptional design and capabilities. As new threats emerge, the F-22 continues to adapt and evolve, ensuring that it remains a dominant force in the skies. The ongoing investment in the F-22’s cockpit and its associated technologies reflects the United States Air Force’s commitment to maintaining air superiority and protecting its national interests. The F-22 Raptor is not just a symbol of American air power; it is a vital asset that plays a critical role in maintaining global security.
The training regimen for F-22 pilots is rigorous and demanding, designed to prepare them for the challenges of operating this advanced aircraft in complex combat environments. Pilots undergo extensive classroom instruction, simulator training, and live flight training, learning to master the F-22’s advanced systems and tactics. The training program emphasizes situational awareness, decision-making under pressure, and effective teamwork. F-22 pilots are among the most highly trained and skilled aviators in the world, capable of operating the aircraft to its full potential.
Frequently Asked Questions (FAQ)
-
What is the primary interface in the F-22 Raptor cockpit?
The primary interface is a large, multi-function display (MFD) that consolidates critical flight information, sensor data, and tactical situation awareness.
-
What is HOTAS, and how does it benefit F-22 pilots?
HOTAS stands for hands-on throttle and stick. It allows pilots to manage the aircraft and its systems without removing their hands from the primary flight controls, maximizing efficiency and minimizing distractions.
-
What is the purpose of the helmet-mounted display (HMD) in the F-22?
The HMD projects flight data and targeting information directly onto the visor, allowing pilots to keep their eyes focused outside the cockpit and enhancing situational awareness.
-
What is sensor fusion, and why is it important in the F-22?
Sensor fusion involves integrating data from multiple sensors to create a more complete and accurate picture of the battlespace, reducing pilot workload and enhancing situational awareness.
-
How is the F-22 cockpit being updated and improved?
The Air Force is constantly developing new upgrades and enhancements, including new sensors, weapons, software, and improvements to the cockpit’s ergonomics and pilot interface, ensuring the F-22 remains a cutting-edge fighter.
